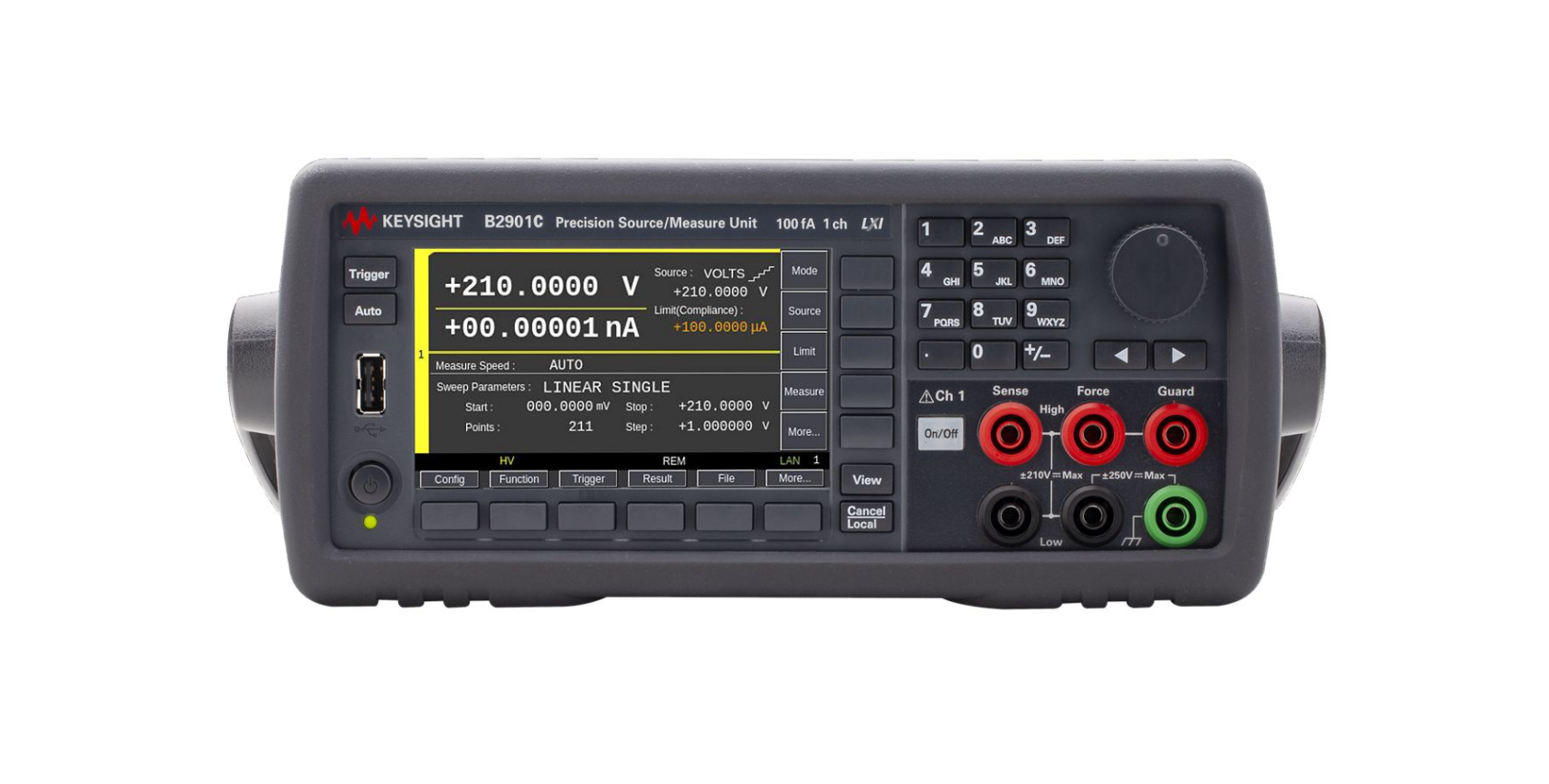

The Keysight B2901C precision source/measure unit (SMU) is a compact, cost-effective 1-channel SMU that accurately sources and measures voltage and current. It offers user-friendly I/V measurements without needing multiple instruments with its 4-quadrant capabilities. The B2901C features a 4.3-inch color display for graphical or numerical measurements and includes PC control software for remote operation at no extra cost. It also supports SCPI commands for seamless integration with conventional SMU setups, ensuring high throughput for efficient testing.

The B2901C enables you to do the following:

• Source with a minimum resolution of 1pA / 1μV.
• Measure with a minimum resolution of 100fA / 100nV.
• Output up to 210V and 3A DC / 10.5A pulse.
• Generate arbitrary waveforms and digitize at intervals as short as 20μs.
